GPS vehicle positioning Antenna 3 M feeder GPS mouse Shell gps navigation antenna GPS
Price section
Price from:
25,862 so'm
Guaranteed delivery time
If we are 45 days late, you will receive your order for free. More details
Always in touch with you
We will answer any questions every day.
Secure payment in a convenient way
We will accept payment by any card
About the product
Characteristic
- Installation type
Plug-in type
- Operating voltage
3-5
- Type
Car TV antenna
- Brand
Other
- Customized processing
Yes
- Applicable model
Applicable model
- Supporting relationship
Applicable
- Have authorized private brands
No
Description
1。天线规格：
中心频率：1575.42MHz
V.S.W.R：< 1.5
带宽：±5MHZ
极化：右极化
阻抗：50Ω
2.LNA规范：
LNA增益（无电缆）：28DB
噪声系数：
干扰抑制：20dB（f0±140MHz）
V.S.W.R：< 2
直流电压：3±0.3VDC；5±0.5VDC
直流电流：<20mA
3、机械规格：
重量：<60克
尺寸：
3M电缆：RG174
连接器：ＳＭＡ
安装方式：磁性底座
1. Antenna Specification:
Center Frequency:1575.42MHz
V.S.W.R:<=1.5
Band Width:±5 MHz
Polarization:Right-hand polarization
Impendence:50Ω
2.LNA Specification:
LNA Gain(Without cable):≥27dB
Noise Figure:<=1.5dB
Interference suppression:20dB(f0±140MHz)
V.S.W.R :<2.0
DC Voltage:3.0±0.3VDC;5.0±0.5VDC
DC current:<=20mA
3.Mechanical Specification:
Weight:<47()gram
Size:
3m Cable:RG174
Connector:SMA

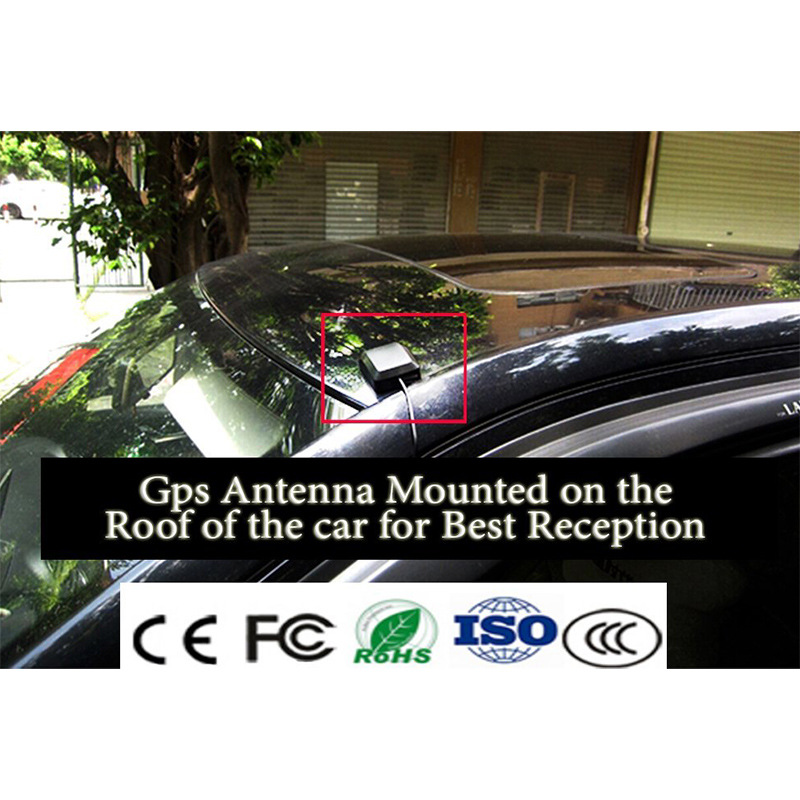

Mountin:Magnetic base
Characters
Properties
- Installation type
Plug-in type
- Operating voltage
3-5
- Type
Car TV antenna
- Brand
Other
Description
1。天线规格：
中心频率：1575.42MHz
V.S.W.R：< 1.5
带宽：±5MHZ
极化：右极化
阻抗：50Ω
2.LNA规范：
LNA增益（无电缆）：28DB
噪声系数：
干扰抑制：20dB（f0±140MHz）
V.S.W.R：< 2
直流电压：3±0.3VDC；5±0.5VDC
直流电流：<20mA
3、机械规格：
重量：<60克
尺寸：
3M电缆：RG174
连接器：ＳＭＡ
安装方式：磁性底座
1. Antenna Specification:
Center Frequency:1575.42MHz
V.S.W.R:<=1.5
Band Width:±5 MHz
Polarization:Right-hand polarization
Impendence:50Ω
2.LNA Specification:
LNA Gain(Without cable):≥27dB
Noise Figure:<=1.5dB
Interference suppression:20dB(f0±140MHz)
V.S.W.R :<2.0
DC Voltage:3.0±0.3VDC;5.0±0.5VDC
DC current:<=20mA
3.Mechanical Specification:
Weight:<47()gram
Size:
3m Cable:RG174
Connector:SMA
Mountin:Magnetic base
