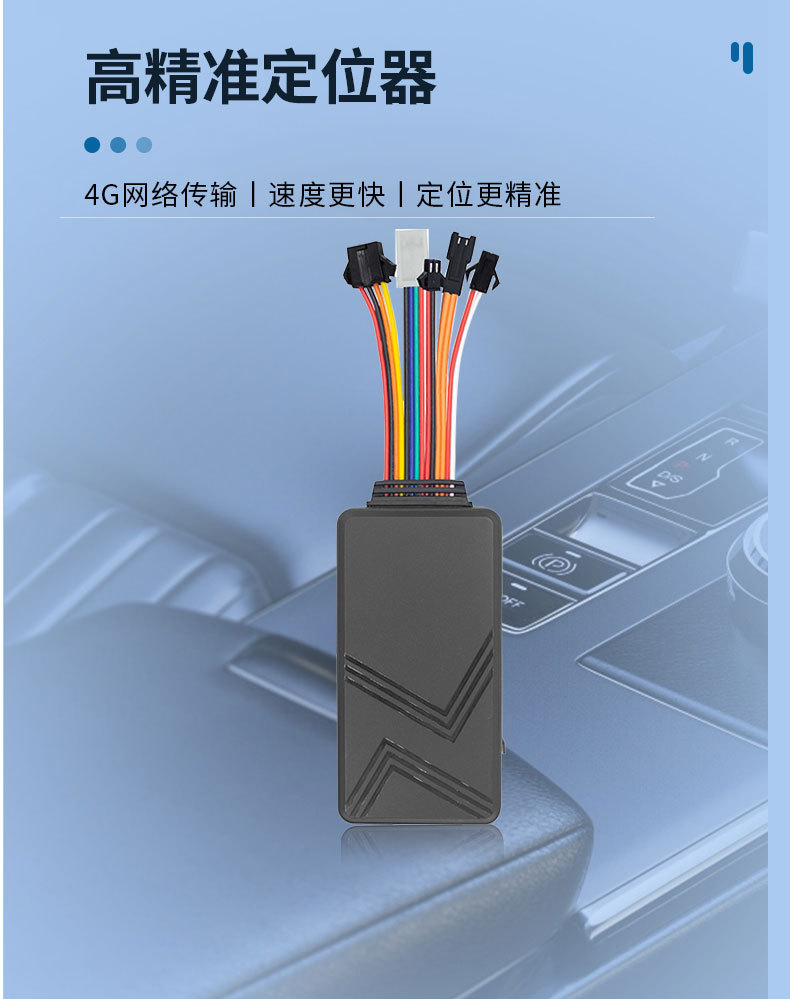

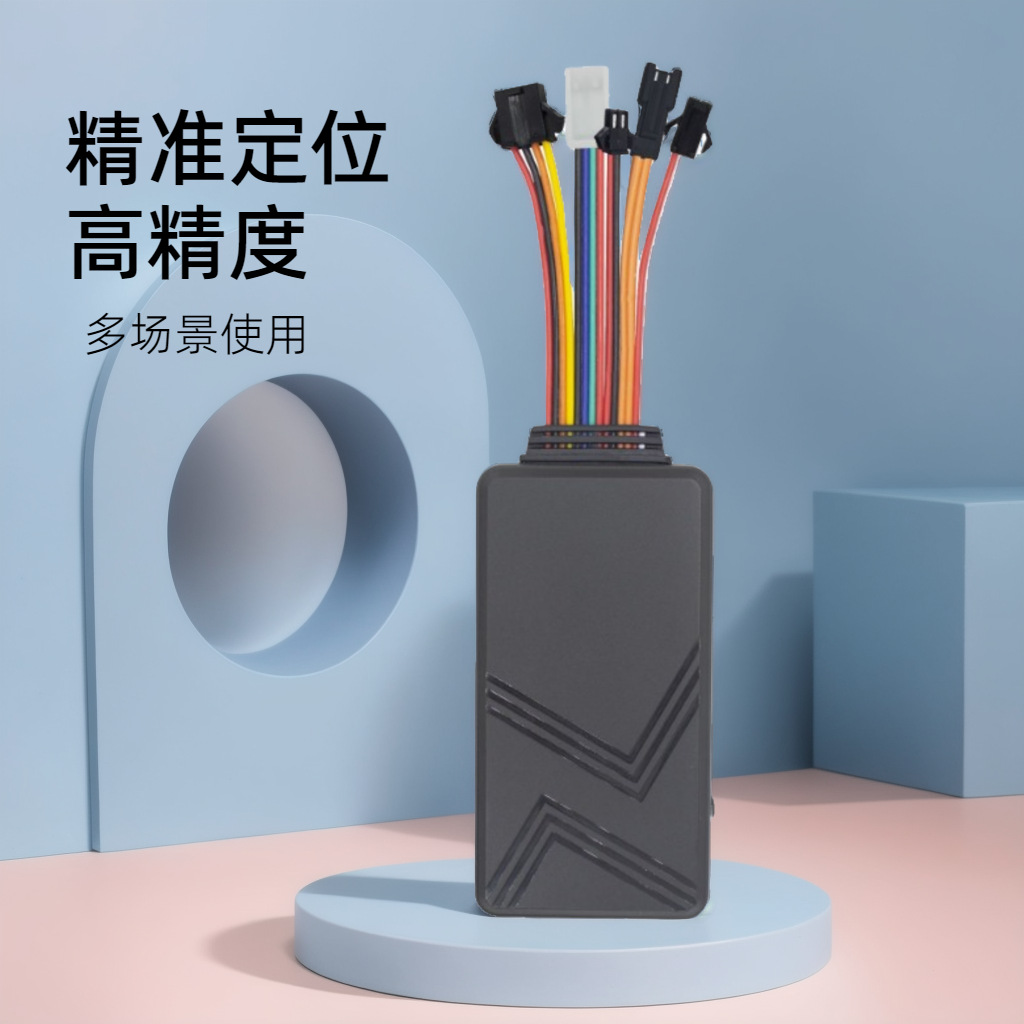

Cross-Border Global Version 4g Car Gps Car Locator Anti-Theft Motorcycle Electric Vehicle Anti-Theft
Price section
Price from:
592,460 so'm
Specification
Domestic version (180ma)
European, asian and african version (180 mah)
South american version (180 mah)
Global version (180ma)
Guaranteed delivery time
If we are 45 days late, you will receive your order for free. More details
Always in touch with you
We will answer any questions every day.
Secure payment in a convenient way
We will accept payment by any card
About the product
Characteristic
- Material
Abs plastic
- Place of origin
Shenzhen
- Map function
Google maps, baidu maps, amap maps, tianditu maps
- Battery type
Polymer battery
- Battery life
2
- Waterproof function
No
- Resolution
Contact customer service for details
- Product code
C003f european, asian and african version/c003f south american version
- Interface text
Chinese and english
- Type
Wiring positioner
- Memory
8
- Brand
Xingmai
- Type of antenna
Fpc antenna
- External power supply form
Battery powered

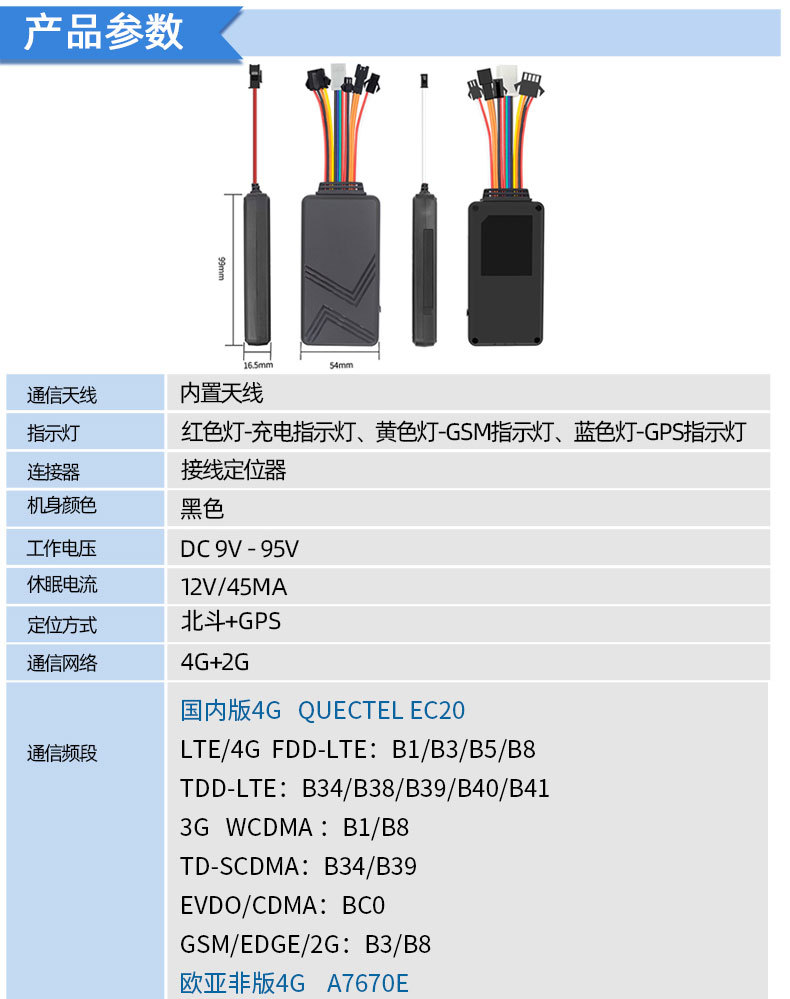

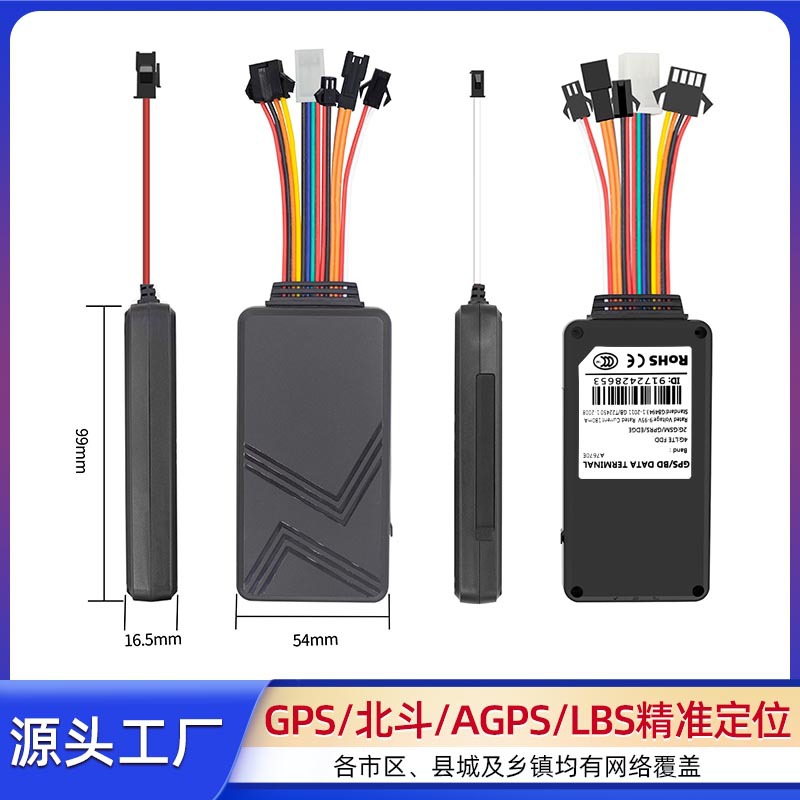

- Overall dimensions
99 mm * 16.5mm * 54 mm

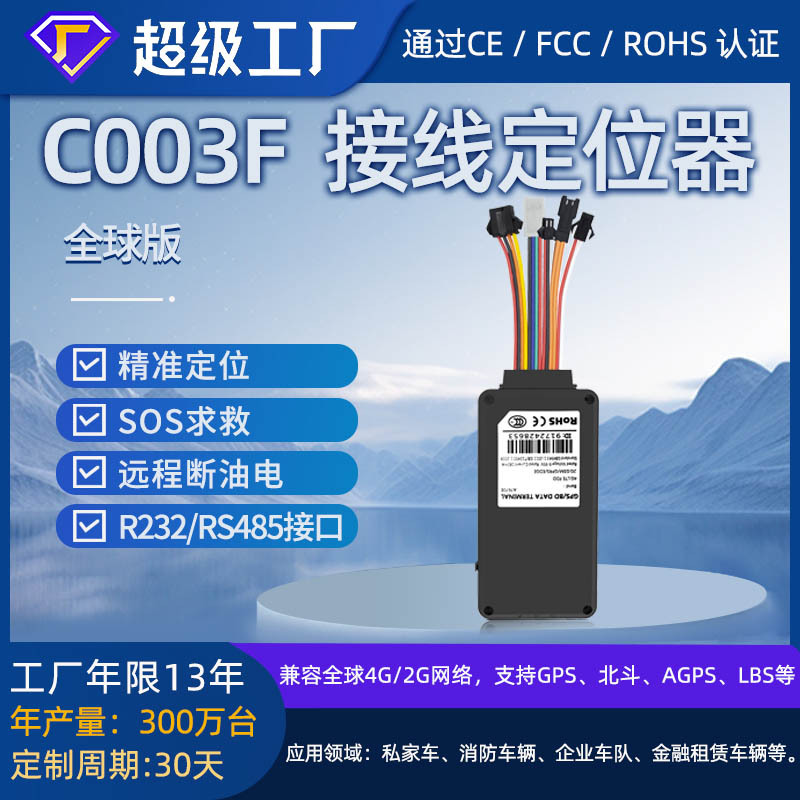

- Model
C003f
- Alarm mode
Vibration alarm
Power outage alarm
Fence alarm
Over speed alarm
- Gps positioning accuracy
5
- Minimum order quantity
3
Description
|
项目 |
功能名称 |
有 |
无 |
功能描述 |
|
|
电气特性 |
供电方式 |
● |
电瓶供电 |
||
|
工作电压范围 |
● |
DC9V - 95V |
|||
|
工作电流 |
● |
|
12V/平均45mA |
||
|
休眠电流 |
● |
12V/小于15mA |
|||
|
内置电池容量 |
● |
180 mAh (3.7V聚合物电池) 选配 |
|||
|
环境特性 |
工作温度范围 |
● |
-20℃ - 75℃ |
||
|
储存温度范围 |
● |
-30℃ - 80℃ |
|||
|
工作湿度范围 |
● |
10%-85% RH 不凝结 |
|||
|
通信特性 |
通信模组品牌/芯片型号 |
● |
QUECTEL EC20 |
||
|
通信频段 |
● |
LTE/4G FDD-LTE:B1/B3/B5/B8 TDD-LTE:B34/B38/B39/B40/B41 3G WCDMA:B1/B8 TD-SCDMA:B34/B39 EVDO/CDMA:BCO GSM/EDGE/2G:B3/B8 |
|||
|
SIMCOM A7670E LTE-FDD：B1/B3/B5/B7/B8/B20 GSM/2G: 900/1800 SIMCOM A7670SA LTE-FDD：B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM/2G：850/900/1800/1900 SIMCOM A7670G LTE-TDD:B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66 LTE-TDD：B38/B39/B40/B41 GSM/2G：850/900/1800/1900MH 全球版3G UC200-GL+MCU WCDMA:B1/B2/B5/B6B/B8 GSM/EDGE/2G GSM:850/900/1800/1900 |
|||||
|
SIM卡 |
● |
标准SIM卡 |
|||
|
通信天线 |
● |
内置天线 |
|||
|

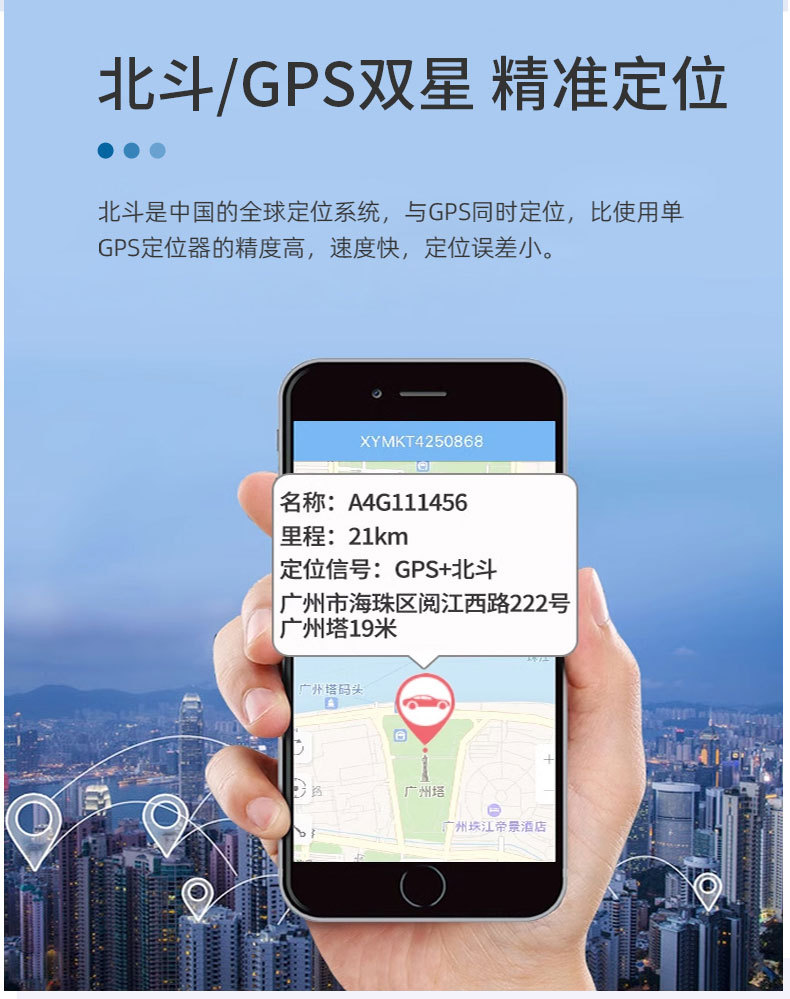

GPS/BD 定位特性 |
定位模组品牌/芯片型号 |
● |
中科微AT6558R |
||
|
定位方式 |
● |
北斗+GPS |
|||
|
冷启动时间 |
● |
平均 32秒 |
|||
|
热启动时间 |
● |
平均 1秒 |
|||
|
跟踪灵敏度 |
● |
-162 dBm |
|||
|
定位天线 |
● |
内置天线 |
|||
|
天线规格 |
● |
25mm * 25mm * 4mm |
|||
|
GPS频段 |
● |
L1: 1575.42±1.023MHz |
|||
|
北斗频段 |
● |
B1: 1561.098±2.046MHz |
|||
|
卫星通道数 |
● |
64 |
|||
|
定位精度 |
● |
<10m（1σ） |
|||
|
授时精度 |
● |
<30ns（1σ） |
|||
|
测速精度 |
● |
<0.1m/s（1σ） |
|||
|
最大加速度 |
● |
4g |
|||
|
最大速度 |
● |
515m/s |
|||
|
最大高度 |
● |
18000m |
|||
|
外形规格 |
主机尺寸(长宽高) |
● |
99 mm * 16.5mm * 54 mm |
||
|
外壳材质 |
● |
ABS塑料 |
|||
|
主机重量 |
● |
75克 |
|||
